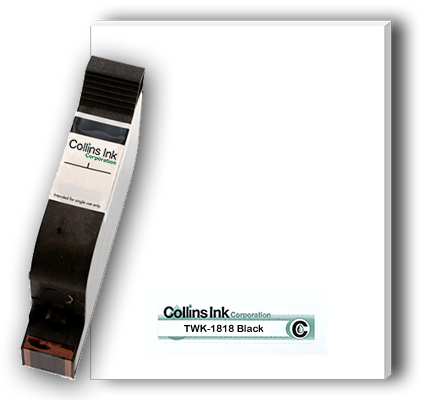

Collins Ink TWK-1818 Complete H Ink Cartridge - For coated/non-coated stock
|
|
|
The Collins Ink TWK-1818 Complete H Ink is a dye/pigment hybrid ink that is formulated to print on both coated and non-coated substrates. This ink will dry quickly and give good permanance on coated stocks, while maintaining excellent print quality and a dark image on non-coated stocks. The heads-up technology allows the cartridge to start up after extended periods of down time without wiping or purging; thus requiring less operator maintenance.
Specifications
| Ink name |
Complete H |
| Ink part number |
TWK-1818 |
| Target Substrates |
porous & lightly coated media |
| Fluid Base |
water |
| Colorant type |
dye/pigment hybrid |
| Drop volume |
TBD |
| Drop speed |
TBD |
| Throughput volume before cartridge failure |
up to 400ml, cartridge orientation downward |
| Shelf life single use cartridge |
1 year from date of fill |
| Shelf life modified cartridge |
6 months from date of fill |
| Runs in bulk supply station |
yes, best suited for applications where cartridge faces downwards |
| Decap time |
>1 hour |
| Optical density |
1.12 @ 600 x 300 dpi on bond |
| Operating Conditions |
10 to 40˚C |
| Storage Temperature |
10 to 30˚C |
| Additional Shipping Requirements |
none |
Recommended Printer Settings
Pen driver voltage: 10.2 V
Fire pulse length: 2.2 microseconds
Fire pulse warming temperature (on or off): Off
Rec pulse warming variable: 40˚C
Dryer assistance needed: Stock Dependent
Type: N/A
Cartridge Maintenance & Handling
• When cleaning the printhead, use a lint-free cloth moistened with de-ionized water.
• Wipe slowly and lightly across tip of the long edge with the printhead facing down.
• Forcing the wipe or using a dry cloth with scratch the printhead
• Using a cloth with lint may clog the nozzles
Cartridge Storage
• Less than 1 day down: Leave cartridges in machine and wipe and purge before next use.
• More than 1 day down: Remove cartridges from machine and place a cartridge clip over the head. Wipe and purge before use.
• Storing cartridges in an airtight container with a damp cloth or sponge, will prevent them from drying out.
• Using a cloth with lint may clog the nozzles
|
