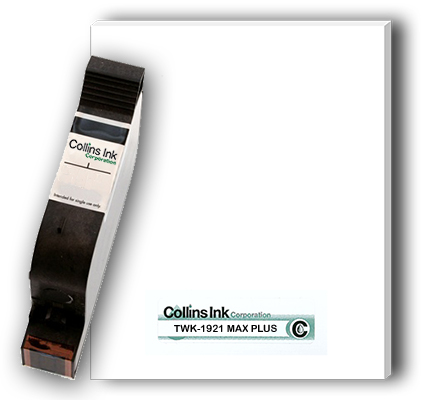

Collins Ink TWK-1921 Max Plus Ink Cartridge - For Aqueous/PVC coated cards
|
|
|
The Collins Ink TWK-1921 Max Plus (Similar to Max 3) Black Ink is a water / solvent, pigment ink that was specifically designed for PVC and plastic card printing. It will also print on aqueous coated paper, varnished media and other difficult non-porous substrates. The quality enhancements our MAX PLUS provides are darkness and better ink lay down on substrates that have lower dyne readings.
Specifications
| Ink name |
MAX PLUS |
| Ink part number |
TWK-1921 |
| Target Substrates |
PVC & plastic cards |
| Fluid Base |
water/solvent |
| Colorant type |
pigment |
| Drop volume |
TBD |
| Drop speed |
TBD |
| Throughput volume before cartridge failure |
TBD |
| Shelf life single use cartridge |
1 year from date of fill |
| Shelf life modified cartridge |
6 months from date of fill |
| Runs in bulk supply station |
TBD |
| Decap time |
up to 25 min |
| Optical density |
1.5 @ 600 x 300 dpi on bond |
| Operating Conditions |
10 to 40˚C |
| Storage Temperature |
10 to 30˚C |
| Additional Shipping Requirements |
none |
Recommended Printer Settings
Pen driver voltage: 10.2 V
Fire pulse length: 2.2 microseconds
Fire pulse warming temperature (on or off): On
Rec pulse warming variable: 40˚C
Dryer assistance needed: Stock dependent
Type: N/A
Cartridge Maintenance & Handling
• When cleaning the printhead, use a lint-free cloth moistened with de-ionized water.
• Wipe slowly and lightly across tip of the long edge with the printhead facing down.
• Forcing the wipe or using a dry cloth with scratch the printhead
• Using a cloth with lint may clog the nozzles
Cartridge Storage
• Less than 1 day down: Leave cartridges in machine and wipe and purge before next use.
• More than 1 day down: Remove cartridges from machine and place a cartridge clip over the head. Wipe and purge before use.
• Storing cartridges in an airtight container with a damp cloth or sponge, will prevent them from drying out.
• Using a cloth with lint may clog the nozzles
|
|
|
