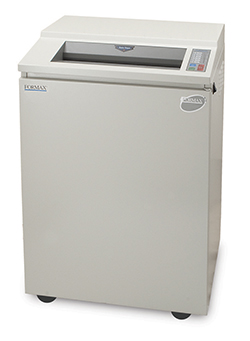

Formax FD 8500HS High Security Office Paper
Shredder
Commercial-grade components in a sleek, compact design
Formax FD 8500HS High Security Office Shredders offer Level 6 Security with a 16”
feed opening, combined with commercial-grade components in a sleek, practical
design. An easy-to-use LED control panel puts the power right at your fingertips.
The FD 8500HS Cross-Cut model can shred up to 5 sheets at a time, up to 35 feet
per minute, with a shred size of 1/32” x 3/16”. It has been evaluated by the NSA and
meets the requirements of NSA/CSS specification 02-01 for Level 6 high security
cross cut shredders. In addition, the ECO Mode saves energy by automatically
switching into standby mode after 5 minutes of inactivity.
The optional EvenFlow™ Automatic Oiling System helps to keep the FD 8500HS
Standard Features
- Evaluated by NSA: Meets the requirements
of NSA/CSS specification 02-01 for Level 6
High Security cross-cut paper shredders
- Auto Start/Auto Stop: Optical sensor detects paper
and starts operation automatically
- ECO Mode: Automatically enters energy-saving
standby mode after 5 minutes of inactivity
- Door Safety Sensor: Motor stops automatically if
cabinet door is opened
- Auto Reverse: In case of paper jam, built-in controls
switch motor into reverse to clear jam
- Heat-treated steel cutters are specially ground for
longevity and require minimal oil
- High Quality Geared Motor: Powerful, efficient AC
geared-motor with heavy duty steel gears for high
performance and minimal noise
- Extra-wide 16” Feed Opening
- Continuous-Duty Motor for non-stop operation
- All-Metal Cabinet with casters
- Auto Sensor: When the waste bin is full, the motor
stops automatically
- Lifetime Guaranteed Heavy-Duty Waste Bin
- Auto Cleaning: If shred capacity is decreased, press
reverse button for 5 seconds and motor will run in
reverse for 1 minute
- Oil Indicator: After every 4 hours of use, the control
panel LED flashes to suggest oiling cutting blades
for optimal performance
- Self-Diagnosis System: Records operation time,
number of auto-reverse sequences, volume of
paper shredded, and can display information for
service technicians
- Thermal Overload Protection
- Safety Circuit Breaker ensures safe operation
- Manual Function: For shredding small paper which
can’t be detected by the sensor
Options
- EvenFlow™ Automatic Oiling System: Lubricates
cutting blades for optimal performance
- High-Security Cutting Head Lubricating Oil:
#8000-15, six 8-ounce bottles per case
- Shredder Bags: Uses #8000-50, case of 100
Warranty
- 1-Year Warranty on cutting head and all parts
Technical Specifications
Cutting Style: Cross Cut
Shred Size: 1/32” x 3/16”
Sheet Capacity: 4 to 5
1-Hour NSA Durability Test: 10 reams/feeding 4 sheets
Speed: 35 fpm
Feed Opening: 16”
Dimensions: 24” W x 20” D x 35” H
Bin Capacity: 26 gal.
Security Level:P-7
Weight: 242 lbs.
Power Supply: 110V, 50/60 Hz
