HP Ink Management System
|
|
|

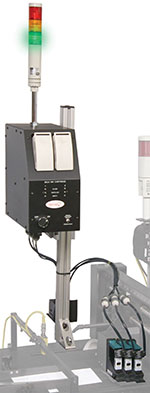

The Secap HP Ink Management System
holds two large 350ml ink cartridges for uninterrupted performance and manages low
ink and out of ink situations by automatically switching cartridges. Secap's HP
Ink Management System is capable of feeding up to eight printheads simultaneously.
Simple audio and visual indicator provides ink system status eliminating the need
for computer screen message.
Ink cost savings, up to 50% over
individual HP cartridges
Cost savings deliver higher profits
per job
Minimizes operator intervention
improving throughput - eliminates frequent changing of individual cartridges on
long runs
Convenient and efficient cartridge
system, hold 350ml of ink
Intuitive audio and light to alert
the operator of system status
Choice of inks for handling different
substrates - Picaso ink (HP IQ7468) and Versatile Black (HP Q2321A)
Pricing
Secap's HP Ink Management System comes with a standard
configuration for 1 1/2" of print
Price:
$5,945.00
Includes
- Control box*
- Regulator Unit (3 each)
- Priming kit
- Mounting hardware
- Alarm light kit
* Ink delivery control box holds (2) 350ml ink cartridges.
Requires (3) Q2320A or IQ7467 printhead / connector assembly for 1 1/2" of print. Recommended
to run system with two 350ml ink cartridges.
Additional Regulator Units is also available for
$865.00/each to add another 1 1/2" of print (total of 3" of print)
Technical Specifications
- Printheads Supported
Up to 8
- Bulk Ink Cartridge
350ml
- Ink Types
HP Versatile Black Ink (HP Q2321A)
Secap Picaso Ink (HP IQ7468)
(Note: Cannot mix inks in same configuration)
- Operator Interface
On/Off switch
Control box indicates cartridges in use
Light and Audio indicators for ink cartridge/system status
Manual button for cartridge selection
- Physical Characteristics
Dimensions: 6"W x 12"D x 30"H
(hardware/mounting bracket included)
Weight: 14 lbs.
Power: 115 VAC
- Included in standard package
Control box with electrical connections
Regulators: 1-8 depending on configuration
Light bar
Hardware and mounting brackets
|
|
|
