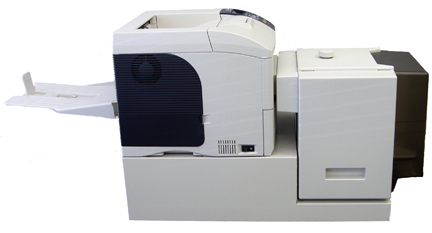

Mailing Printer System 3

Straight Through Paper Path
Printing labels, postcards or heavy card stock? Are you afraid that they will curl or skew due to the paper path of your printer? We remove that fear by providing you with a straight through paper path.  With no turns involved, you'll get your output to come out just as crisp as when you put it in the printer.

Low Total Cost of Ownership
This mailing printer offers one of the lowest total costs of ownership in the market today. It is a cost-effective printing solution that will answer all your needs, without breaking your bottom line.

Price: $2,795.00

Includes 1 year of On-Site Service (additional years are available)

Specifications

• Speed: Up to 47 ppm (47 PPM Letter / 36 PPM Legal / 26 PPM 4x6 Postcards / 14 PPM #10 Envelopes)
• Max Monthly Duty Cycle: 250,000 (20,000 for postcards and envelopes)
• Resolution: Fine 1200 mode (1200 x 1200 dpi), Fast 1200 mode (1800 x 600dpi, 2400 x 600 dpi w/KIR), 600 x 600 dpi
• Paper Supply: Bulk feeder - 2,000 sheet capacity (20# bond), Cassette - 500 sheet capacity
• Minimum Paper Size: 3" x 5"
• Maximum Paper Size: 8 1/2" x 14" (8 1/2" x 11" in Bulk feeder)
• Paper Handling: Heavy Cardstock, Labels, Postcards. (Not recommended for printing on any glossy or coated stock)
• Paper Weight: Up to 120 lbs.
• Paper Capacity: Up to 2,000 8 1/2" x 11" (20# bond weight) Sheets
• Toner Yield: 20,000 based on 5% coverage on 8 1/2" x 11" (yield's will vary with postcards and envelopes)

Guidelines / Requirements for Envelopes and Postcards

When using envelopes and postcards, use the guidelines given below.

Envelopes

An envelope is a more complex object than a single sheet of paper. For this reason, it may not be possible to obtain consistent printing quality over the entire envelope surface. Use the following guidelines to select the proper envelopes.

• Envelopes should have the basis weight of 70 to 100g/m2 (0.16 to 0.22 lb./ream) and up to 4 plies of the paper that is used to construct the paper including all flaps and overlaps.
• Envelopes should have sharply-creased folds and accurately joined corner edges.
• Envelopes should have a smooth, uncoated surface. Envelopes that are too smooth, however, can give an adverse effect to the drum and fuser units inside the printer.
• Envelopes should have a straight grain orientation.

• Envelopes should have a pulp content of al least 80%, and should have a moisture content of 4 to 6%.

Figures below shows some typical envelope types:

This is the type of envelope best recommended for use with the bulk paper feeder.


Although this type of envelope generally feeds normally, they are somewhat prone to jamming than above.

This type of envelope performs reliably, provided that envelopes are loaded so that the bottom (sealed end) feeds into the printer first.


Avoid using this type of envelope made of double-ply paper.

Before printing on envelopes of any type, test printing performance. Avoid using any of the following kinds of envelopes even if the envelope meets the requirements above.

• Envelopes that have an exposed adhesive surface, or having a peel-off sealing string for adhesive surface. (Peeled-off sealing string inside the printer can cause a serious problem.)
• Envelopes with metal fasteners or tie strings.
• Envelopes with transparent windows, holes, perforations, or cutouts.
• Envelopes made using paper, pigment, adhesive, or other material that will degenerate or release hazardous gases when subjected to the heat that is generated in the printer.
• Envelopes that are bent, dirty, or redundant of paper dust.

Curled Envelopes

An envelope tends to curl excessively or become uneven in its thickness since it is constructed by paper which is folded, creased, and seamed in many parts, making the stack of envelopes on the feeder tray unlevel. To avoid feeding problems, the unevenness of the stack of envelopes on the paper tray must be less than those specified in the following figures:

Vertical curl must be less than 10 mm. Thickness in bottom or top must be less than 10 mm

Horizontal curl must be less than 5 mm. Thickness in right or left trails must be less than 5 mm.
