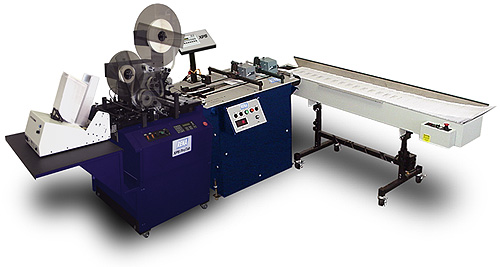

Rena XPS-1000
High Volume / Production Console Address Printer
The Heavy Duty Printing Solution
From The Company That Got You Here.
-
Designed for the professional mailer that needs
rugged equipment for those long production runs.
-
Affordable alternative to bulky, overpriced
transport systems.
-
Production speed of 34,000 postcards per hour.
-
Production rates of 26,000 #10 envelopes per
hour.
-
Hewlett Packard print technology - Uses RENA
C8842A cartridges.
-
Quick Start Kit available - Versatile Black
Ink Cartridges, Rena JETMate, Pro-Series Printer Cable, RENACare Roller
Cleaner, Ink Cartridge Storage Stands, Cartridge Cleaning Wipes & Windows
Printer Drivers.
-
Comes with 31-day Flex Mail 2 Trial.
-
Prints addresses, attention line, and postal
barcodes on mailpieces up to 1/2" thick - Optional thickness of 1 3/4" with
separate feeding system.
-
Prints all major postal and industrial barcodes,
including new 2-D barcodes.
-
Choose TrueType fonts, 13 internal fonts, or
download your own soft fonts.
-
Prints graphics, logos, and signatures!
Suggested Retail
Rena XPS-1000S1.5 - 1.5" Print Area:
$20,495.00
Rena XPS-1000S3 - 3" Print Area: $27,295.00
Technical Specifications
| Print Technology: |
Three Rena C8842A Versatile Black Inkjet
Cartridges by Hewlett Packard Per Print Module |
| Address Speed: |
34,000/hr at 150 dpi
34,000/hr at 200 dpi
21,000/hr at 300 dpi
21,000/hr at 450 dpi
10,000/hr at 600 dpi
* 6 lines, Postcards |
26,000/hr at 150 dpi
26,000/hr at 200 dpi
15,000/hr at 300 dpi
15,000/hr at 450 dpi
7,500/hr at 600 dpi
* 6 lines, No. 10s |
| Print Quality (DPI): |
600 dpi 400
dpi
550 dpi 300 dpi
500 dpi 200 dpi
450 dpi 150 dpi |
| Cartridge Capacity: |
90,000 addresses @ 300 dpi
46,000 addresses @ 300 dpi
23,000 addresses @ 450 dpi
11,500 addresses @ 600 dpi
Note: Based on 100 character addresses. |
| Print Area: |
1.5" to 3" Height, 19" Length |
| Print Orientation: |
Normal and Reverse |
| Print Direction: |
Right to Left and Left to Right |
| Line Spacing: |
1 to 10 lines per inch |
| Character Spacing: |
0 to 90 characters |
| Character Size: |
1X to 6X - height and width |
| Character Sets: |
USA7, UK7, Fra7, GER7, Ita7, Den7, NOR7,
SWE7, SwN7, Por7, PC8, Rom8, P850, ECMA, P8DN, ICEL, P852. |
| Ink monitor: |
Via display. |
| Fonts: |
13 Internal fonts plus downloadable fonts
(see options) and TrueType Fonts. |
| Graphics: |
Downloadable |
| Test Print: |
Customized and downloadable via PC. |
| Barcodes: |
USPS 11-digit Delivery Point, USPS 2-D (pending),
British Postal (bpo4), Dutch Postal (kix), 2/5 Interleave, Codabar, Code
39, EAN8 & 13 (UPC) |
| Material Size: |
Min: 2" wide, 4" long; Max: 31" |
| Eject Delay: |
0.1 to 9.9 seconds. |
| Microprocessor: |
RISC 32-bit, 33 MHz |
| Memory: |
8 MB per print module. |
| Address Buffer: |
Last 20 addresses. |
| Settings: |
10 programmable settings. |
| Firmware Update: |
Via PC interface in flash proms. |
| PC interface: |
Parallel. |
| Counters: |
One resettable job counter, one permanent
lifetime counter. |
| Noise: |
<75 db |
| Duty Cycle: |
120 million addresses total or 2 million
per month over a 5-year life cycle. |
| Dimensions: |
54" L x 34" W x 48" H, 280 lbs. |
| Software: |
FLEX Systems Flex Mail 2 &
Several Mail List Management Packages Available. |
| Options: |
Versatile Black Ink (C8842A), Spot Color
Ink, Rena TB-359 or TB-459 Conveyor/Stacker, Rena XPS-ProDry, FlexMail2
Software. |
|
All Specifications Subject To Change
Without Notice
|
