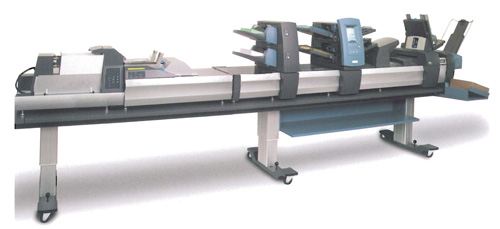

The Multi-Feeder XL for the SI5
400 folder inserter offers flexible and enhanced capabilities for large format media and for jobs with multiple sheets. It is an excellent choice for short runs at production speeds as it will maintain high throughput even with larger collations.1. Multi-Feeder XL
T
he Multi-Feeder XL maximizes the productivity of the SI5400 by accommodating booklets. flats, and inserts up to .16" thick. It collates and passes complete sets of media into the S15400. Loads on the fly and has an adjustable gap feeder for using a wide variety of media, with forward and reverse accumulation. Double document detection , overcount control , and variable speed control helps maintain the efficiency of the job.2. Input Transport Base
T
his interface unit is required for the multi-feeder. It provides reliable handling of booklets and stiff media entering the S15400. Compartment doors open for easy access to the machine for scheduled maintenance.3. High Capacity Loader
Th
e high capacity loader helps to eliminate downtime associated with reloading and matches sheet feeder demand. It has an automatic start/stop controlled by the feeder, handles media from 16-33 lb. and has a capacity of up to 4,500 sheets.4. Table Extension
Ergonomically designed table extension accommodates the
accessory options for the S15400. This motorized table extension adjusts to a convenient work height and aligns with the SI5400 for precise media handling.MSRP
| SI5400-2M | SI5400 Multi-Feeder XL, Base unit w/two feeder tower, Input Transport | $77,000.00 |
| SI5400-4M | SI5400 Multi-Feeder XL, Base unit w/four feeder tower, Input Transport | $84,000.00 |
| Additional Options/Accessories | ||
| F734 | SI5400 High Capacity Letter Sheet Loader for MultiFeeder XL | $13,150.00 |
| F7TS | Sheet/Flats Tray | $219.00 |
| F7T1 | Insert Tray | $229.00 |
| F721 | High Capacity Sheet Feeder | $7,030.00 |
| F700327 | Tower Special Feeder Kit | $270.00 |
| F790035 | Matte Booklet & Feeder Kit | $1,455.00 |
| DIXT | Exit Transport | $2,225.00 |
| DIVS | Vertical Power Stacker | $1,625.00 |
| F7DI | Bottom/Middle Address Inverter | $969.00 |
| DIBB | Belt Stacker w/install to height stand | $3,569.00 |
| DIBD | Tandem Belt Conveyor Stacker w/install to height stand | $5,195.00 |
| F741 | Flats Sealer Kit | $5,945.00 |
| DITP | Height Adjustable Table, 90" no doors | $2,925.00 |
| DITR | Table Extension for MultiFeeder XL | $1,640.00 |
| F7TB | Tower OMR and barcode scanning hardware | $2,705.00 |
| F7FB | High Capacity sheet feeder/Fixed Beam OMR & barcode scanning hardware (requires F790010) | $2,600.00 |
| F7MB | High Capacity sheet feeder/Moving Beam Picket barcode scanner (requires F7FB & F790010) | $3,785.00 |
| F790010 | High Capacity sheet feeder Scanner Mounting Kit | $1,079.00 |
| F7SB | Barcode Scanning Activation Firmware | $3,245.00 |
| F7S1 | Enhanced Integrity Activation Firmware (For OMR and barcode scanning) | $1,625.00 |
| F7S2 | Selective Integrity Activation Firmware (For OMR and barcode scanning) | $1,625.00 |
| F736 | Standard OMR Scanning for MultiFeeder XL | $8,500.00 |
| F737 | Standard Barcode Scanning for MultiFeeder XL | $5,000.00 |
| F738 | Moving Beam Barcode Scanning for MultiFeeder XL | $12,500.00 |
| F739 | Custom Scanning Software for MultiFeeder XL | $15,200.00 |
| F745 | 2D Barcode Scanning kit | $14,995.00 |
Technical Specifications
MUL
TI-FEEDER XL (Without loader)Throughput
U
p to 5,400 pieces/hourMaterial
SpecificationsWeight: 16 to 44 lb
.Booklet Thickness: Up to 0.16"
Length: 7" to 14"
Width: 5" to 9.8"
Feed Tray Capacity
Up to 1.4" of media
Physical Characteristics
Dimensions: 23.6"W x 39.4"L x 19"H
Weight: 141 Ibs.
Electrical: 100-240 VAC, 50/60 Hz, 5A
INPUT TRANSPORT
BASEDimensions: 21
.75"W x 21.18"L x 10.6"HWeight: 66 Ibs.
OPTIONAL EQUIPMENT
: HIGH CAPACITY LOADERHopper Capacity
: Up to 4,500 sheetsMedia Size: 8.5" x 11"
Media Weight: 16 to 33 lb.
Dimensions: 19.7"W x 35.4"L x 19.7"H
Weight: 132 Ibs.
TABLE EXTENSION
Dimensions
: 60"W x 27.5"L x 21"H Weight: 198 Ibs.MULTIFEEDER XL ADD-ONS
OMR
Barcode
Moving Beam
Custom Scanning
Additional Information
Secap SI 5400 MultiFeeder XL Brochure
