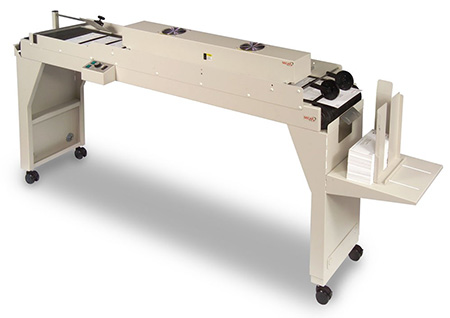

Secap TCD 72 Conveyor / Stacker

The Secap TCD 72 conveyor features two, high capacity vacuum fans that stabilize material on the conveyor. This helps control the registration and transport of difficult media. In addition, the unique and flexible design of the TC 72 make it adaptable to meet your transport and drying needs.

A dryer used in combination with a conveyor is the professional approach to speeding up the drying process while retaining print quality.

Dry Assist

• Provides increased drying action
• Preserves image quality
• Essential for high dpi printing

Suggested Retail: $7,175.00

Technical Specifications

• Speed
  0 to 350 feet per minute

• Media Size
  Min. 3”x 5”; Max. 10”x 13”

• Fans
  (2) high-output vacuum fans rated at 170 CFM

• Dimensions
  Chassis: 14" Wx92" L
  Drop Tray: 16" Lx14" W
  Tray Depth: 5" to 11"

• Controls
  Individual on/off switch for each fan.
  Variable dial for controlling belt speed and on/off switch.

• Belt
  Wide perforated design provides smooth transport of material

• Interface
  Built-in interface for optional dryer.

• Weight
  150 lbs. (with stand)

Secap TCD 72 Brochure
