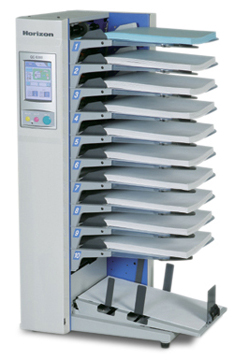

Standard QC-S300 Collator

collator,collators,paper collator,paper collators,collating,paper collating,paper collating machines

The QC-S300 Collator, features and advanced color touch screen operation panel and programming features that can be found commonly on more expensive suction feed collators. Boasting speeds that make this the worlds fastest tabletop friction feed collator with the ability to automatically insert tab sheets and dual cycling, this is truly a remarkable machine. The modular design of the system enables this 10 station collator to expand to 20 or even 30 bins and can be accessorized with the PS-P61 stapler, MF-1 Mail Folder/Stapler or the SPF9/SPF-9A and F40 bookletmakers.

Suggested Retail

QC-S300 - 10 bin collator: $7,425.00

QC-S300F - additional 10 bin collator w/ conveyor: $8,890.00

Technical Specifications

Maximum Number of Towers	3 (10, 20, 30 Stations)
Bin Capacity	1.1" (200 + sheets 20 lb. bond)
Sheet Size	5.5" x 6.9" to 12" x 17"
Paper Weight	13 lb. bond to 80 lb. index (including NCR, some coated stock)
Production Speed	up to 3900 sets/ hr 8.5" x 11" up to 2100 sets/ hr 11" x 17"
Error Detection	Bin empty, miss, double, jam, stapler or bookletmaker fault
Power	115 V @60 Hz
Weight/ Dimensions	137 lbs. 23.3"W x 19.5" D x 39.4" H
Optional Accessories	Collator Stand (MT-100); QC-S300F with transport Conveyor, PS-P61 Stapler, MF-1 Mail Folder/Stapler F40, SPF-9 and SPF-9A Bookletmakers
Set Calibration Button	Sets error detection and active feed bins
Double Sheet detection	Opacity Detection
Sensors	Bin Empty, Receiving Stacker Full, Transport Door Open
Receiving Stacker Capacity	2.96"
Stacker Capability	Straight and Offset Stacking
Adjustable Bin Pressure	Yes
Counter	Total Count (Ascending), Preset Counter (Descending)

Additional Information

Standard QC-S300 Brochure
