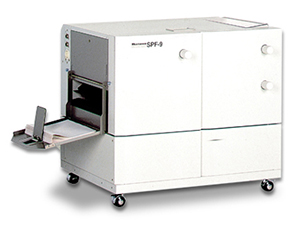

Standard SPF-9 Bookletmaker

bookletmaker,booklet maker,duplo bookletmaker,standard bookletmaker

The Standard SPF-9 bookletmaker is well suited to both an off-line or on-line with the QC-S30 collator. Capable of producing booklets at speeds up to 2100 booklets per hour, the SPF-9 features simple semi-automatic setup. Changing over to any size sheets from 8.5" x 11" to 12.5" x 17 is accomplished by rotating the easily accessible control knobs. When working with 8.5" x 11" sheets, finsihed sets can be stapled and folded, folded only, corner stapled, corner stapled and folded, top or side stapled or top stapled and folded.

The FC-9 Face Trimmer can be added to trim the edge of the book by 1/8" to 1/2" to provide the highest quality booklets.

MSRP

SPF-9 Bookletmaker: $11,550.00

Optional FC-9 Face Trimmer: $7,175.00


Technical Specifications

Cycle speed up to 2,100 / hour
Job change calibration Dial control, semi-automatic
# Staple Heads 2
Staple Heads (max) 2
Staple Positions Fixed (4.7"/120mm center to center)
Stapling Mechanism Clincher (Lie Flat)
Staple Magazine Capacity 5,000
Sheet Sizes Bookletmaking & folding 8.5" x 11" up to 11" x 17"
top stapling / corner stapling 8.5" x 11"
Stock Weights 16 lb. bond to 110 lb. index
Maximum # sheets Stapling and folding thickness up to 22 sheets (20 lb. bond or equiv.), 10 sheets (110 lb. index)
Top stapling / corner stapling up to 20 sheets (110 lb. index)
Production Speed With QC-S10 and MT-66 Stand or Manual up to 2100 books / hour
Paper Size Presets: 11" x 17", 8.5" x 14", 8.5" x 11",
9" x 12"
Stapling & Folding Presets for 8.5" x 11": (7 Modes) Center staple and fold (booklet), corner staple only(portrait), fold only, corner staple and fold, dual lead edge staple only (portrait or landscape), dual lead edge staple and fold (portrait)
Stapling & Folding Presets for 11" x 17", 8.5" x 14", 9" x 12": Center staple and fold (booklet), fold only
Other Features Counter, side jog, tail jog, automatic staple out detect, paper jam, two way communication with collator for miss and double detection
Power 110V 50/60Hz, 115V 60Hz
Dimensions 48.8"L x 24.5"W x 31.4"H
Machine Weight 340 lbs.
Accessories ED-9 Electric Conveyor, FC-9 Face Trimmer

Additional Information

Standard SPF-9 Brochure
