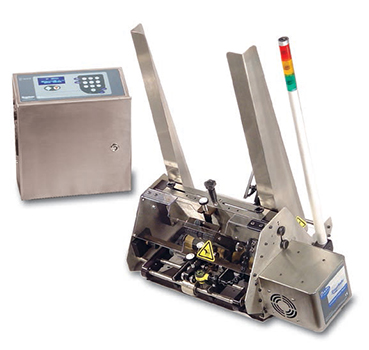

The ST-1450 has been designed for high-performance feeding and dispensing. Its intelligent system controller provides easy feature configuration. Compact footprint is ideal for in-line conveyor mounting. Use it in stand-alone applications as well as integrating into other systems. The ST-1450 is capable of handling a wide variety of products, from single sheets to thick magazines.
Applications
| Maximum Product Size: (w/optional deck extension) |
14.5 W x 9 L in (368 x 228 mm) 14.5 W x 14 L in (368 x 355 mm) |
| Minimum
Product Size: (optional): |
3.75 W x 2.5 L in (95 x 63
mm) 2 W x 2.5 L in (51 x 63 mm) |
| Min/Max Product Thickness: | .003-1.0 in (.076-25.4 mm) |
| Belt Speed : |
5500 in/min (140,000 mm/min) |
| Electrical Requirements: | 115/230vac, 50/60Hz, 3A |
| Weight: | 84 lbs. (40.367 kg) |
Additional Information
Streamfeeder ST-1450 EX Brochure
