A new level of feeding performance. High-speed counting, accumulating, and collating.

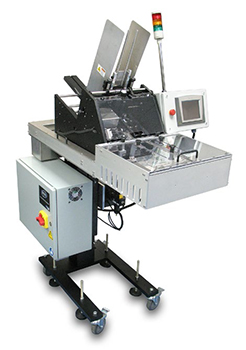

The new Servo Series feeders/dispensers have been designed to
handle the most challenging products. From large single sheets and signatures to
high-speed accumulating, the advanced servomotor technology provides all the
power, accuracy, and performance you need.
Servo Series feeders/dispensers can be used as “stand-alone” solutions or can be
integrated with accumulators for high-speed collating systems. With industry
leading performance you can feed as many as 50,000 A4 sheets/hour or batch count
twenty-five 8.5” x 11” sheets at 25 batches/minute.
Applications
| Features | Advantages | Benefits |
| Push Button Controls |
>
Simple user interface and operation > Rugged design for industrial use |
>
Minimizes operator training > No expensive displays to replace |
| 1/2" Thick Side Plates | > Robust heavy-duty design | > Dependability over time |
| Product Flexibility |
>
Capable of handling product sizes 3” x 4” to 12” x 12” > Patented rotating separating technology allows the largest range of material types |
>
Allows you to bid a wider spectrum of jobs > Single sheets, coupons, books, magazines and folded material can all be run on the same system |
| Minimum Adjustment Points |
>
Three adjustment points for product change-over > Simple tool less 1-knob adjustments |
>
Faster make-ready increases productivity > Product change-over can be handled by unskilled operators |
| Vacuum Assist |
>
Vacuum capability allows difficult material to feed without slipping > Product can be fed on worn belts greatly increasing belt life |
>
No struggling with coated or slick stocks > Fewer belt changes result in less maintenance down time |
| Servo Motor and Controller |
>
Maximum feed belt speed > Precise motor position control > Servo provides unmatched torque |
>
Maximum productivity > Precise placement accuracy > Higher stack heights reduces loading time |
| Maximum Product Size: | 12 W x 12.5 L in (304 x 317 mm) |
| Minimum Product Size: | 3 W x 4 L in (76 x 101 mm) |
| Min/Max Product Thickness: | .003-.5 in (.076-12.7 mm) |
| Belt Speed: | 8900 in/min (226,000 mm/min) |
| Electrical Requirements: | 115/230vac, 50/60Hz, 6A |
| Air Requirements: | 2 CFM |
| Weight: | 80 lbs. (36.3 kg) |
