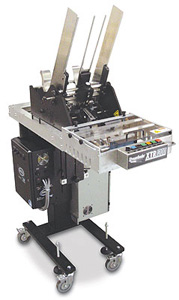

Streamfeeder SV-1200RD Batch Counting Feeder

envelope feeder,friction feeder,multipurpose feeder,paper feeder,envelope feeders,streamfeeder,surefeed,address printer feeder,tabbing machine feeder,mail tabber feeder,streamfeeder

The SV-1200, our fastest servo motor feeder, along with our Retractable Dropper provides high performance feeding, counting, and accumulation. The heavy-duty construction and simple tool-less, single-knob adjustments allow you to feed and count a wide variety of products at high speeds.

Applications

High-Speed Batch Counting
High-Speed Collating
High-Speed Accumulating
High-Speed Automatic Wrapping
Kit Fulfillment

Suggested Retail: $29,995.00

Technical Specifications

Maximum Product Size:	12 W x 12 L in (304 x 304 mm)
Minimum Product Size:	3 W x 4 L in (76 x 101 mm)
Min/Max Product Thickness:	.003-.5 in (.076-12.7 mm)
Batch Size (max. accum. thickness)	1.5in (38mm)
Belt Speed:	8900 in/min (226,000 mm/min)
Electrical Requirements:	115/230vac, 50/60Hz, 6A
Air Requirements:	2 CFM
Weight:	185 lbs. (83.9 kg)
Weight (stand):	150 lbs. (68 kg)
Warranty:	One-year limited

Additional Information

Streamfeeder SV-1200RD Brochure
