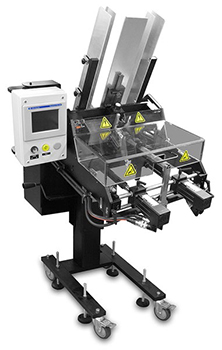

The fastest card/envelope dropper in the marketplace! The XT-1200 Dropper is designed to be a “high-speed” flexible solution for packaging operations pursuing greater productivity through automation. Ideal for use with wrapping systems, cartoners, L-sealers, and many other types of packaging equipment that require dependable automation for product counting and accumulating.
At the core of the XT-1200 Dropper is our patented Differential Friction Technology™ which ensures package integrity through precision product separation and singulation.
The powerful XT-1200 Dropper will effectively feed, count, and accumulate products at high-speed producing high levels of automated productivity. Integrate two or more XT-1200s on an infeed conveyor to create the ultimate high-speed card/envelope collating system.
The XT-1200 Dropper is easy to learn and simple to operate.
Applications
|
Maximum Product Size: |
9 W x 7 L in (229 x 178 mm) |
|
Minimum Product Size: |
4.5 W x 4 L in (114 x 101 mm) |
| Min/Max Product Thickness: | .003-.5 in (.076-12.7 mm) |
| Batch Size: | Maximum accumulation thickness 1 in (25.4 mm) |
| Belt Speed : | 13,800 in/min (350,520 mm/min) |
| Air Requirements: | 5 CFM |
| Electrical Requirements: | 115/230vac, 50/60Hz |
| Weight: | 260 lbs. (117.9 kg) |
Additional Information
