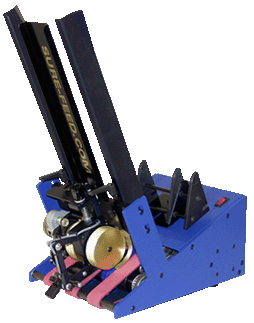

Sure-Feed Replace-A-Station Inserter Feeders

FEATURES

Comes standard with our Patented Dynamic Rotation Technology, the ECO model features our Patented "Football" Separator.  The EI Series Feeder comes standard with heavy duty 1/4" thick powder coated side frames, small product guides and variable speed control.

ADVANTAGES TO INVESTING IN  A EI SERIES FEEDER

• Feeds z-folds and thin product with ease
• Consistent feeding (no misses / no doubles)
• Increase hopper capacity
• Easily integrates to your inserter
• Increase productivity

SUGGESTED RETAIL

ECO 900 EI - 6 x 9 Economy Replace A Station Inserter Feeder - $2,100.00

SE 900 EI - 6 x 9 Replace A Station Inserter Feeder - $2,600.00

ECO 1200 EI - 9 x 12 Economy Replace A Station Inserter Feeder - $3,550.00

SE 1200 EI - 9 x 12 Replace A Station Inserter Feeder - $4,200.00

TECHNICAL SPECIFICATIONS

SE 900 EI / ECO 900 EI

• Maximum Product Size: 9.125" -W x 9" - L
• Maximum Product Size MM: 231.775mm W x 278.6mm L
• Minimum Product Size: 3" W x L - 2" - L
• Minimum Product Size MM: 76.2mm W x 50.8mm L
• Maximum Product Thickness: .75"
• Maximum Product thickness MM: 19.5mm
• Minimum Product Thickness: 002"
• Minimum Product Thickness MM: .0508mm
• Presentation Sensor: Standard
• Sleep Mode: Standard
• Double Detection: N/A
• Select On Demand: Optional
• Feeder Capacity: 10" Vertical / 20" Optional Hopper
• Batch Count: Optional
• Electrical: 120VAC / 240VAC
• Speed: Variable 20 to 350 Ft/Min.
• Drive Motor:Variable DC

SE 1200 EI / SE 1200 EI

• Maximum Product Size: 11.5" -W x 12" - L
• Maximum Product Size MM: 292.1mm W x 304.8mm L
• Minimum Product Size: 3" W x L - 2" - L
• Minimum Product Size MM: 76.2mm W x 50.8mm L
• Maximum Product Thickness: .75"
• Maximum Product thickness MM: 19.5mm
• Minimum Product Thickness. 002"
• Minimum Product Thickness MM: .0508mm
• Presentation Sensor: Standard
• Sleep Mode: Standard
• Double Detection: N/A
• Select On Demand: Optional
• Feeder Capacity: 20" Vertical
• Batch Count: Optional
• Electrical: 120VAC / 240VAC
• Speed: Variable 20 to 350 Ft/Min.
• Drive Motor:Variable DC

APPLICATIONS

Replacement pocket feeder for vacuum
style hoppers on swing arm inserters.

OPTIONS

• Select On Demand with 24V or Vacuum Hose Attachment
• Credit Card Guides
• A4 Format (European Size)

FEEDABLE MATERIALS

• Letter
• Half
• Double Panel
• Engineering
• Z-Fold
• Gate

Additional Information

Sure-Feed Replace-A-Station Inserter Feeders Brochure
