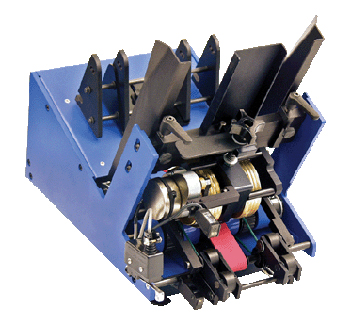

Sure-Feed Add-A-Station Inserter Feeders

FEATURES

The EX Feeder comes standard with our Patented Dynamic Rotation Technology, heavy duty 1/4" thick powder coated side frames, ground fault, product guides and variable speed control.

ADVANTAGES TO INVESTING IN AN EX FEEDER

• Adding stations to your existing inserter
• Easy installation/space saver
• Move from oen inserter to another
• Miss (standard) and Double Detection (optional)
• Higher throughput/lower cost

SUGGESTED RETAIL

ECO 900 EX - 6 x 9 Add A Station Inserter Feeder - $3,550.00

ECO 900 EX DD - 6 x 9 Add A Station with Double Detect Inserter Feeder - $4,000.00

SE 900 EX - 6 x 9  Add A Station Inserter Feeder - $3,850.00

SE 900 EX-B - 6 x 9  Add A Station with Batch Counting Inserter Feeder - $5,000.00

TECHNICAL SPECIFICATIONS

SE 900 EX / ECO 900 EX

• Maximum Product Size: 9.125" W x 5.5" L
• Maximum Product Size MM: 231.775mm W x 139.7mm L
• Minimum Product Size: 5" W x L - 2.5" - L
• Minimum Product Size MM: 127mm W x 63.5mm L
• Maximum Product Thickness: .125"
• Maximum Product Thickness MM: 3.175mm
• Minimum Product Thickness: .002"
• Minimum Product thickness: .0508mm
• Presentation Sensor: N/A
• Sleep Mode: Standard
• Double Detection: Only Available on the ECO 900 EX
• Select On Demand: Optional
• Feeder Capacity: 20" Vertical
• Batch Count: N/A
• Electrical: 120VAC / 240VAC
• Speed: Variable 20 to 350 Ft/Min.
• Drive Motor: Variable DC

APPLICATIONS

Add additional inserting stations to your gripper arm inserter.

OPTIONS

• Batch Counting
• Credit Card Guides
• 24 AC/DC Interface
• Select on Demand
• Double Detection (only available on ECO Model)

FEEDABLE MATERIALS

• Letter
• Half
• Double Parallel
• Engineering
• Z
• Gate

Additional Information

Sure-Feed Add-A-Station Inserter Feeders Brochure
