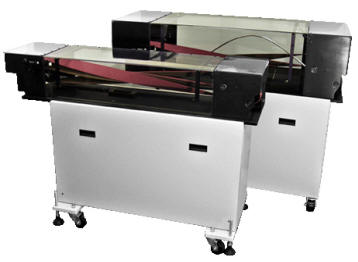

Sure-Feed's Belt Turnovers come standard with Variable Speed, adjustable height , jam detection and safety covers.

Suggested Retail

10 x 13 Belt Turnover: $6,250.00

ADVANTAGES TO INVESTING IN A BELT TURNOVER

• Quick return on investment
• Quick setup
• Infeed is adjustable for thick or thin product
• Variable speed for hard to control product
• Easy integration

WHAT DOES A BELT TURNOVER DO?

A Belt Turnover takes product coming from an in-line inserter and flips it over. This prepares the newly inserted envelope for Ink Jetting, labeling & metering.

This is how it works:

TECHNICAL SPECIFICATIONS

Belt Turnover 6x9

• Height Maximum: 37"
• Height Maximum MM: 939.8mm
• Height Minimum: 30"
• Height Minimum MM: 762mm
• Adjustable Thickness Gauge: Up to 3/8"
• Maximum Product Size: 6"x9"
• Maximum Product Size MM: 152.4mm x 228.6mm
• Electrical: 120 VAC / 240 VAC
• Drive Motor: Variable DC

Belt Turnover 10x13

• Height Maximum: 37"
• Height Maximum MM: 939.8mm
• Height Minimum:30"
• Height Minimum MM: 762mm
• Adjustable Thickness Gauge: Up to 3/8"
• Electrical : 120 VAC / 240 VAC
• Drive Motor: Varibale DC

APPLICATIONS

Turning product over to create in-line applications.

OPTIONS

Right to Left or Left to Right output capabilities.

FEEDABLE MATERIALS

• Flats
• #10 Envelopes
• Post Cards
• Booklets Folded

All materials are product dependent. Please send samples for testing.

KEY FEATURES

Transitions made simple.

2 1/4" wide gum belts handle glossy products with ease.

In-line divert & metering using the Belt Turnover.

Additional Information

Sure-Feed Belt Turnover Brochure
