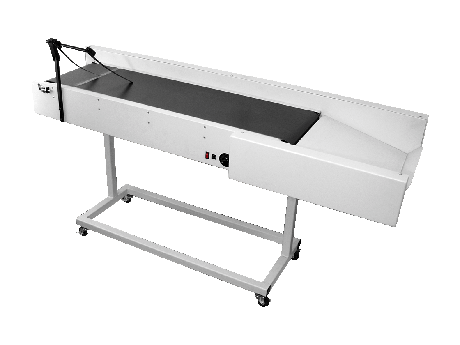

The Inserter Shingling Conveyor is typically used to accumulate product from an inserter, but can be used for collection of pieces in many other applications. The Inserter Shingling Conveyor has variable speed belt with a maximum speed of 120' per minute and is adjustable both vertically and horizontally.

Suggested Retail: $3,100.00

ADVANTAGES TO INVESTING IN A INSERTER SHINGLING CONVEYOR

• Solid body construction
• Easy integration
• Completely mobile
• 10" wide product belt
• Variable speed

TECHNICAL SPECIFICATIONS

• Maximum Product Size: 12" Wide
• Maximum Product Size MM: 304.8mm
• Maximum Height: 28"
• Maximum Height MM: 711.2mm
• Minimum Height: 34"
• Minimum Height MM: 863.6mm
• Speed: Variable up to 120' / min.
• Electrical: 120 VAC / 240 VAC
• Drive Motor: Variable DC

APPLICATIONS

Inserters, fulfillment, wrapping and many more.

OPTIONS

• Right to Left
• Left to Right

Additional Information

Sure-Feed Inserter Shingling Conveyor Brochure
