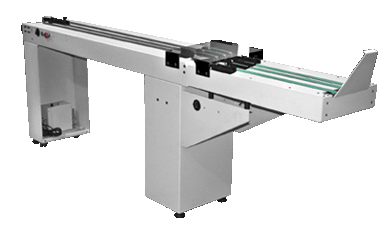

The SP (Small Product) Vacuum Conveyor is ideal for transferring small products to the variable speed conveyors.  It features 3' slow moving collection extension with positive flow transfer, vacuum pump, 1 vacuum belt, 110 VAC outlet and casters.

Suggested Retail

6' Speed Sort Conveyor: $8,000.00

9' Speed Sort Conveyor: $9,800.00

ADVANTAGES TO INVESTING IN A SMALL PRODUCT VACUUM CONVEYOR

• Solid body construction
• Positive Flow Transfer
• Easy integration
• Completely mobile
• Variable speed
• Stop/Start control

TECHNICAL SPECIFICATIONS

• Maximum Product Width: 11"W x 10"L
• Maximum Product Width MM: 279.4mm W x 254mm L
• Minimum Product Size: 1" W x 2" L
• Minimum Product Size MM: 25.4mm W x 50.8mm L
• Maximum Height: 40"
• Maximum Height MM: 1016mm
• Minimum Height: 36"
• Minimum Height MM: 914.4mm
• Orientation: Left to Right
• Speed: Variable up to 700' / min.
• Electrical: 120 VAC / 240 VAC
• Conveyor Length: 6' or 9' (add 3' extension to overall length)
• Conveyor Length MM: 1828.8mm or 2743.2mm
• Drive Motor: Variable DC

APPLICATIONS

Attaching, Ink Jetting, Labeling In-Line or Off-Line

OPTIONS

• Extra Nip Roller Assembly
• Gear Down
• 6' or 9' Configurations (add 3' extension to 6' and 9' lentghs)

KEY FEATURE

SP Vacuum Conveyor transferring to the 3' extension conveyor.

Additional Information

Sure-Feed Small Product Vacuum Conveyor Brochure
