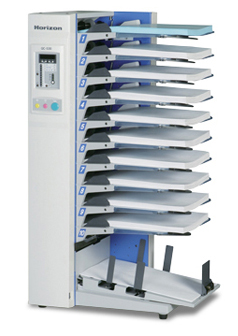

Standard QC-S30 Collator

collator,collators,paper collator,paper collators,collating,paper collating,paper collating machines

The QC-S30 Collator is one of the worlds fastest tabletop friction feed collators, and can be built into a 3-tower table top friction feed collating system. The modular design of the system allows the flexibility to expand with additional components as production needs grow. The QC-S30's innovative design allow for 10, 20, 30 stations, offers speed and quality construction, and will provide years of superior productivity and reliability. Accessories for the QC-S30 Collator include the PS-P61 Corner Stapler and MF-1 Mail Folder/Stapler as well as the SPF9/SPF-9A and F40 Bookletmakers.

MSRP

QC-S30 - 10 bin collator: $6,975.00

QC-S30F - additional 10 bin collator w/ conveyor: $8,395.00


Technical Specifications

Maximum Number of Towers 3 ( 10, 20, 30 Stations )
Bin Capacity 1.1" ( 200 + sheets 20 lb. bond )
Sheet Size 5.5" x 6.9" to 12" x 17"
Paper Weight 13 lb. bond to 80 lb. index ( including NCR, some coated stock )
Production Speed up to 3900 sets/ hr 8.5" x 11"
up to 2100 sets/ hr 11" x 17"
Error Detection Miss, double, jam, stapler or bookletmaker fault
Power 115 V @60 Hz
Weight/ Dimensions 137 lbs. 23.3"W x 19.5" D x 39.4" H
Optional Accessories Collator Stand (MT-100); QC-S300F with transport Conveyor, PS-P61 Stapler, MF-1 Mail Folder/Stapler
F40, SPF-9 and SPF-9A Bookletmakers
Set Calibration Button Sets error detection and active feed bins
Double Sheet detection Length Detection
Sensors Receiving Stacker Full, Transport Door Open
Receiving Stacker Capacity 2.96"
Stacker Capability Straight and Offset Stacking
Adjustable Bin Pressure Yes
Counter Total Count (Ascending), Preset Counter ( Descending)

Additional Information

Standard QC-S30 Brochure
