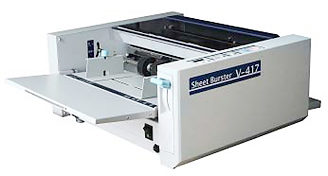

Duplo V-417 Cut Sheet Burster

Businesses and organizations processing documents such as checks, gift certificates, invoices, labels, and tickets on pre-perforated forms will fi nd the V-417 Cut Sheet Burster extremely useful and simple to operate. The V-417 automatically separates pre-perforated forms and stacks them in sequential order. With speeds of up to 140 sheets per minute, it’s the ideal finishing solution for bursting multiple forms printed on the same sheet. Eliminate cut sheet bursting by hand and add effi ciency to your operation!

Features

• Wide range of paper stock up to 110 lb. index
• Form sizes up to 11” x 17”
• Up to 140 sheets per minute
• Speed control in 5 steps
• New LCD counter
• Adjustable side guides for different form widths
• Preset counter
• Last job memory

Technical Specifications

• SPEED 5-level speed adjustment: 42, 64, 89, 114, 140 sheets/minute
• FORM SIZE 4” x 5” to 11” x 17”
• PAPER WEIGHTS 13 lb. bond - 110 lb. index*
• BURST LENGTH 2.5” - 9.9”
• FEEDING SYSTEM Top feed
• FEEDING TRAY CAPACITY 400 sheets
• STACKER Receiving Tray
• POWER SOURCE 120V, 0.8A
• DIMENSIONS (LxWxH) 28” x 19” x 9”
• WEIGHT 60 lbs.
• OPTION Belt conveyor stacker

Additional Information

Duplo V-417 Brochure
