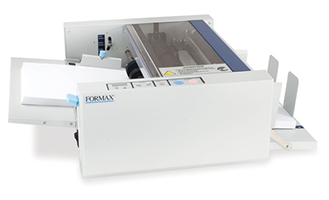

The FD 4170 Cut Sheet Burster is the ideal finishing solution when multiple forms are printed on one page. Direct from a laser printer to the FD 4170, pre-perforated forms are automatically burst at the perforation and stacked sequentially at speeds of up to 140 sheets per minute. Pre-programmed cut settings and a new LCD counter make bursting projects easier than ever. No more cut sheet bursting by hand!
Standard Features:
5-level speed adjustment: 42, 64, 89, 114, 140
sheets per minute
4-digit LCD Counter
Feed tray capacity of up to 400 sheets
Three-tire, top-loading feed system
Accommodates a wide range of paper stock,
up to 110# index (175gsm)
Paper sizes up to 11” x 17”
Adjustable side guides for different form widths
Last job memory
Pre-programmed cut settings for 11”, 14”, 17”
paper
Programmable job settings
Technical Specifications
Speed: 5-level speed adjustment: 42, 64, 89, 114, 140 sheets per minute
Feed Tray Capacity: Up to 400 sheets
Paper Size: 5” - 17” H x 4” - 11” W
Paper Weight: 13# bond - 110# index (58 - 175 gsm)
Min./Max. Burst Length: 2.5” - 9.9”
Dimensions: 32” L x 9” H x 16” D
Weight: 56 lbs.
Voltage: 120V, 60 Hz
