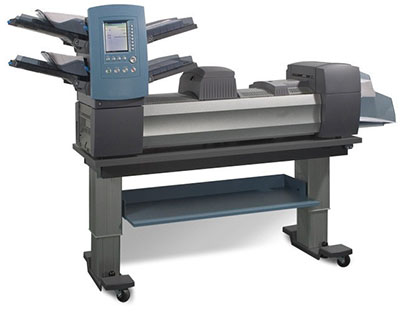

Secap SI 5200 Series Folder Inserter

The SI5200 advanced features include a tower feeder that holds up to four interchangeable feeders and an optional high capacity sheet feeder is available with two trays that will hold up to 1,000 sheets each. The innovative modular tabletop design enables the SI5200 to be expanded or changed as business and communication needs evolve. The SI5200 utilizes a next generation user interface that is simple to read with a full color and intuitive LCD display. This system can memorize up to 24 different jobs enabling users with the ability to effortlessly switch applications and program repeats mailings for simple integration into the workflow process.

High productivity, will process up to 4,300 pieces per hour
Exceptional throughput for complex jobs, especially when feeding multiple sheets from the same tray
Excellent system for short runs and reprints in production mail operations
Load-on-the-fly capabilities allow the system to pause until new material is loaded, which increases productivity by not stopping the system during a job to refill the stations.
Clear Deck function allows the customer to clear all the material within the transport area at the touch of a button at the end of each job.

Suggested Retail

SI5200-2	Base Station w/ two Feeder Tower	$35,695.00
SI5200-4	Base Station w/ four Feeder Tower	$38,399.00
SI5200-2h	Includes 2 station feeder tower and one (2) station high capacity sheet feeder	$42,725.00
SI5200-4h	Includes 4 station feeder tower and one (2) station high capacity sheet feeder	$45,429.00
SI5200-2hx	Includes 2 station feeder tower and two (2) station high capacity sheet feeders	$49,755.00
SI5200-4hx	Includes 4 station feeder tower and two (2) station high capacity sheet feeders	$52,459.00
Additional Options/Accessories
F7T2	2 Feeder Tower	$3,245.00
F7T4	4 Feeder Tower	$5,949.00
F780183	Sheet/Flats Tray	$219.00
F780184	Insert Tray	$219.00
F721	High Capacity Sheet Feeder	$7,030.00
F700327	Tower Special Feeder Kit	$270.00
F790035	Matte Booklet & Feeder Kit	$1,455.00
F7ET	Exit Transport	$1,625.00
DIVS	Vertical Power Stacker	$1,617.00
F7DI	Bottom/Middle Address Inverter	$969.00
DIBB	Belt Stacker w/install to height stand	$3,569.00
DIBD	Tandem Belt Conveyor Stacker w/install to height stand	$5,195.00
F741	Flats Sealer Kit	$5,945.00
DITP	Height Adjustable Table, 90" no doors	$2,925.00
F790018	18" Table Extension	$379.00
F790019	30" Table Extension	$489.00
F790019	30" Table Extension	$520.00
F7TB	Tower OMR and barcode scanning hardware	$2,705.00
F7FB	High Capacity sheet feeder/Fixed Beam OMR & barcode scanning hardware (requires F790010)	$2,600.00
F7MB	High Capacity sheet feeder/Moving Beam Picket barcode scanner (requires F7FB & F790010)	$3,785.00
F790010	High Capacity sheet feeder Scanner Mounting Kit	$1,079.00
F7SB	Barcode Scanning Activation Firmware	$3,245.00
F7S1	Enhanced Integrity Activation Firmware (For OMR and barcode scanning)	$1,625.00
F7S2	Selective Integrity Activation Firmware (For OMR and barcode scanning)	$1,625.00

Technical Specifications

Paper Dimension
Sheets : Up to 8.5" x 14" (Up to 350)
Inserts (min/max): 5" x 2.83"
to 9.84" x 6" (Up to 350)
Envelopes (min/max): 6.37" x 3.5" to 10.5" x 6.5" (Up to 500)
Flat Envelopes: Up to 10.5" x 13" (Up to 100)

Speed (mail pieces/hr.)
Up to 4,300

Fold Types
C, Z, Single, Double

Folder Capacity
8 Sheet Maximum

Flat Envelope Inserting
25 Sheet Maximum

Sealing Capacity
Up to 8,000 letters before reloading

System Options

High Capacity Sheet Feeder, Vertical Power Stacker, Optical Mark Recognition (OMR), Inverter Kit, and Exit Transport

Additional Information

Secap SI 5200 Brochure
